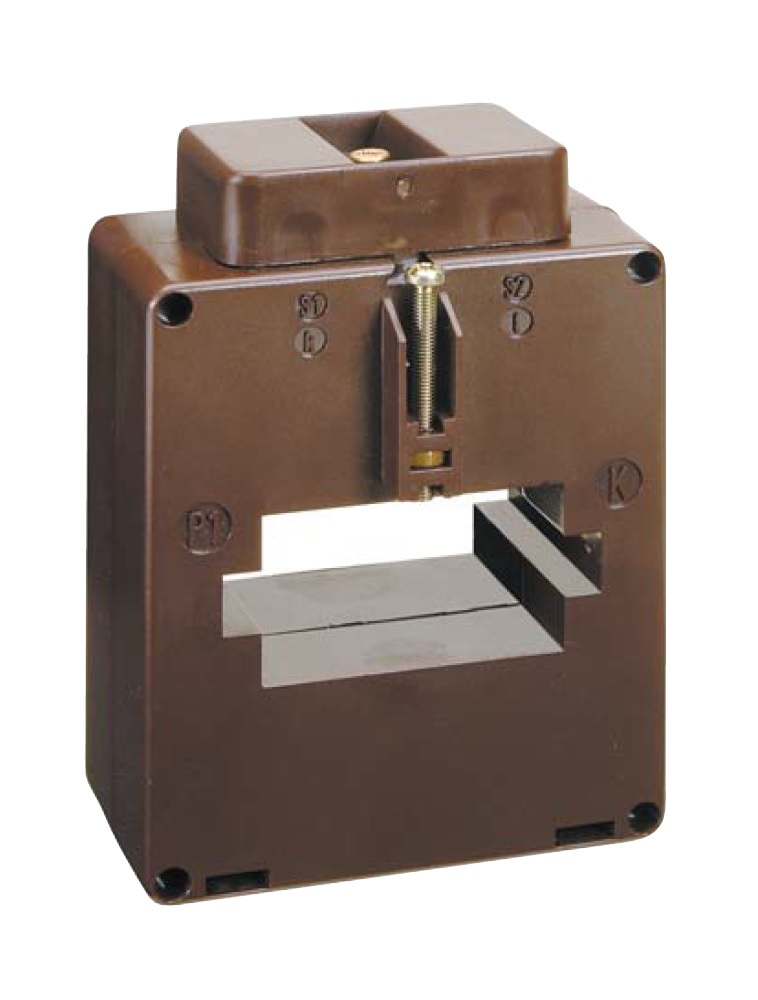

Name: Transformator de curent 800/5A 50*30/60*10mm, clasa 0,5
SKU: MG956080-A
Price: 183.23 RON
Availability: InStock

Transformator de curent 800/5A 50*30/60*10mm, clasa 0,5

183,23 lei Pret cu TVA 221,71 lei

TASI50D120 Transformator de curent 800/5A 50*30/60*10mm, clasa 0,5

Compare

Greutate	0,47 kg
Dimensiuni	48,00 × 90,00 × 130,00 cm
Curent primar	800
Masă g	500
disipare	-346,00
Conexiune	##
LxÎxA mm	90x130x48
Accuracy classes	##
COD COMANDĂ	MG956080-A
Bare colectoare maxim	60×10
Unitate de ambalare	1
PROMO CODE CH	9098-0040-28
Carcasă	##
PREG	2330
HxBxT mm	130x90x48
DESCRIERE2	Transformator de curent 800/5A
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Housing material	Polycarbonate, self-extinguishing
Fabricant	Schrack
Montaj	by fixing screws on the busbar
Burden	Class 0.5 (6VA);Class 1 (8VA);Class 3 (10VA)
Rated frequency	50
Clasă	0,5
Masă netă	0,47
Standard produs	EN 61869-2
Winding secondary side	Screw terminals M4;Faston 4,8×0,8mm
PROMO CODE GER INDUSTRY	9098-00022-06
Intended use	for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
COD PROMO	9098-0024-22

Transformator de curent 800/5A 5030/6010mm, clasa 0,5

Fisa tehnica
