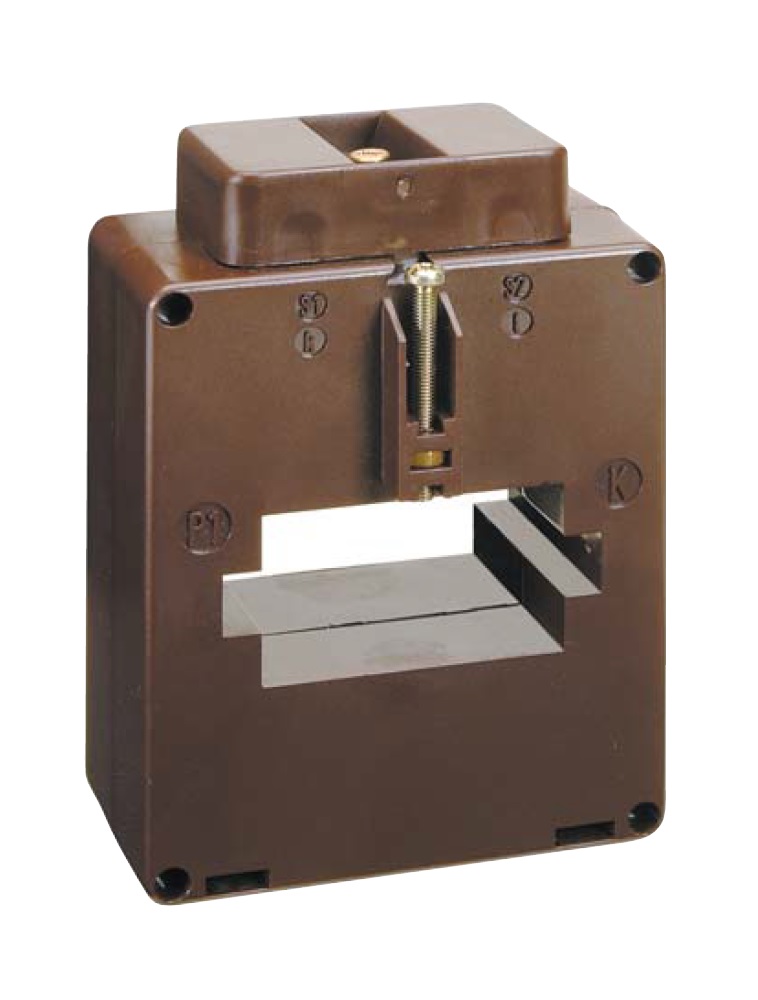

Name: Transformator de curent 600/5A, 60x10, clasă 0,5
SKU: MG956060-A
Price: 145.95 RON
Availability: InStock

Transformator de curent 600/5A, 60×10, clasă 0,5

145,95 lei Pret cu TVA 176,60 lei

Transformator de curent 600/5A, 60×10

Compare

Greutate	0,32 kg
Dimensiuni	60,50 × 70,00 × 95,00 cm
Masă g	500
disipare	-346,00
LxBxH mm	61x70x95
Conexiune	##
COD PROMO	7051-0019-29
Accuracy classes	##
Bare colectoare maxim	60×10
Unitate de ambalare	1
Carcasă	##
PREG	2330
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Simbol CAD	P
Masă netă	0,32
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Housing material	Polycarbonate, self-extinguishing
COD COMANDĂ	MG956060-A
Fabricant	Schrack
Terminale externe CAD	1
PROMO CODE GER INDUSTRY	7051-00016-54
Montaj	by fixing screws on the busbar
Curent primar	600
Rated frequency	50
Clasă	0,5
DESCRIERE2	Transformator de curent 600/5A
PROMO CODE CH	7051-0032-08
Accesorii opționale	MGX20006–;MGX20306–;MGX20406–
Standard produs	EN 61869-2
Descriere electrică CAD	600/5A, 50x20mm
Burden	Class 0.5 (4VA);Class 1 (6VA);Class 3 (8VA)
Winding secondary side	Screw terminals M4;Faston 4,8×0,8mm
Intended use	for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm

Fisa tehnica

Fisa Tehnica RO

Fisa Tehnica EN

Transformator de curent 600/5A, 60×10, clasă 0,5

Fisa tehnica
