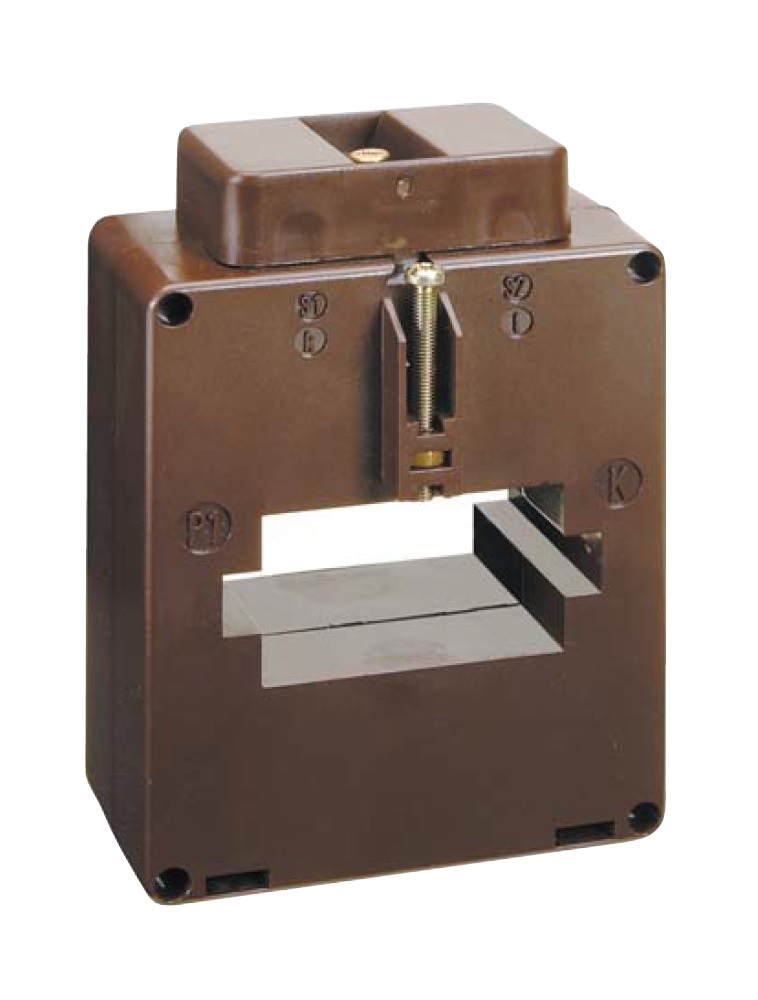

Name: Transformator de curent 400/5A, 60x10, clasă 1
SKU: MG956040-A
Price: 136.5 RON
Availability: InStock

Transformator de curent 400/5A, 60×10, clasă 1

136,50 lei Pret cu TVA 165,17 lei

Transformator de curent 400/5A, 60×10

Compare

Greutate	0,32 kg
Dimensiuni	60,50 × 70,00 × 95,00 cm
Masă g	500
Burden	Class 1 (4VA);Class 3 (6VA)
disipare	-346,00
LxBxH mm	61x70x95
Conexiune	##
Accuracy classes	##
Descriere electrică CAD	400/5A, 50x20mm
Bare colectoare maxim	60×10
Unitate de ambalare	1
Carcasă	##
PREG	2330
COD COMANDĂ	MG956040-A
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
PROMO CODE GER INDUSTRY	6856-00015-64
Simbol CAD	P
Masă netă	0,32
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Housing material	Polycarbonate, self-extinguishing
PROMO CODE CH	6856-0030-00
Fabricant	Schrack
Terminale externe CAD	1
Montaj	by fixing screws on the busbar
Rated frequency	50
COD PROMO	6856-0018-11
Clasă	1
Accesorii opționale	MGX20006–;MGX20306–;MGX20406–
Standard produs	EN 61869-2
Winding secondary side	Screw terminals M4;Faston 4,8×0,8mm
Intended use	for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Curent primar	400
