Name: Transformator de curent 2000/5A, 125x50, clasa 0,5
SKU: MG959200-A
Price: 314.4 RON
Availability: InStock

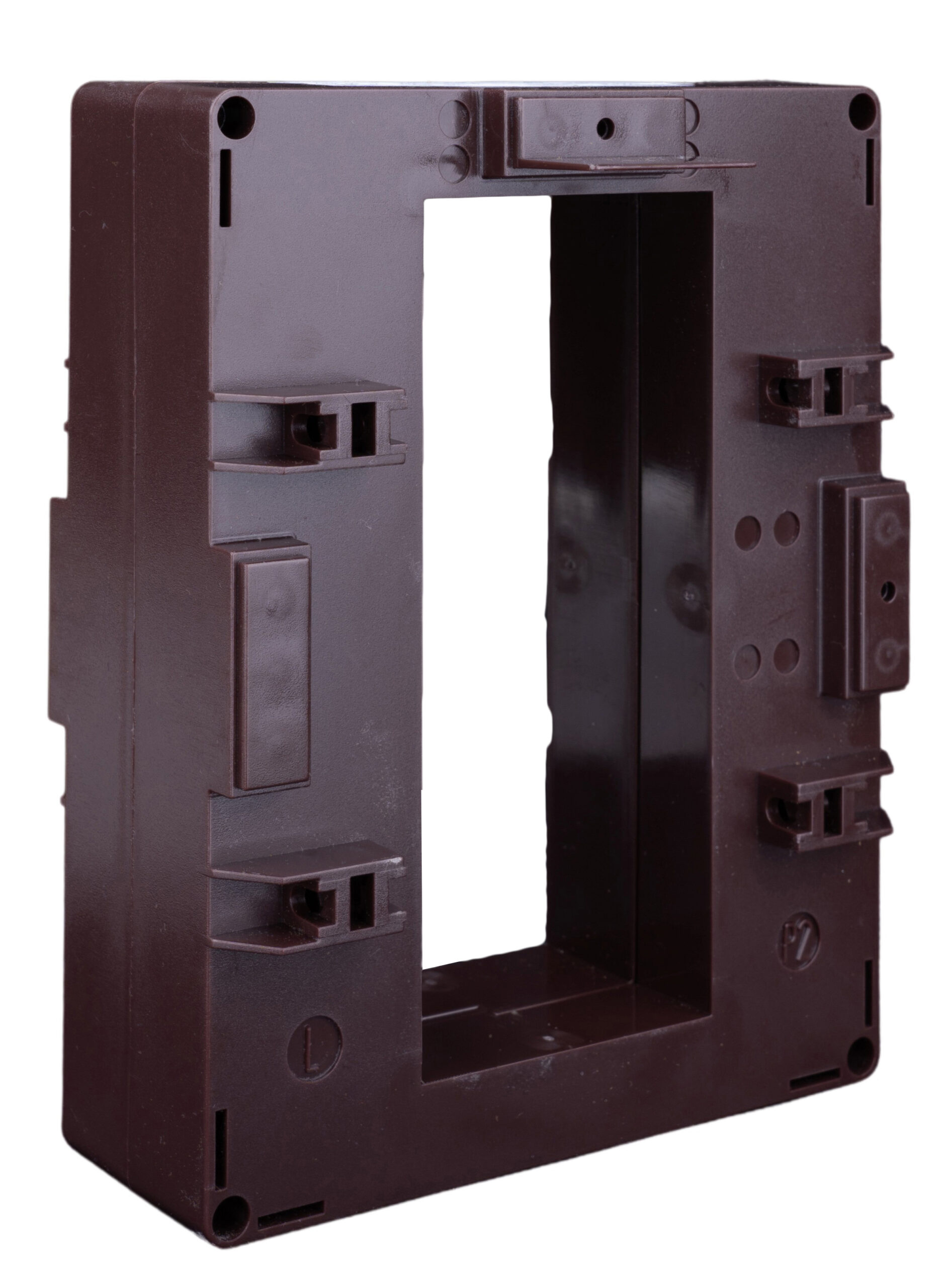

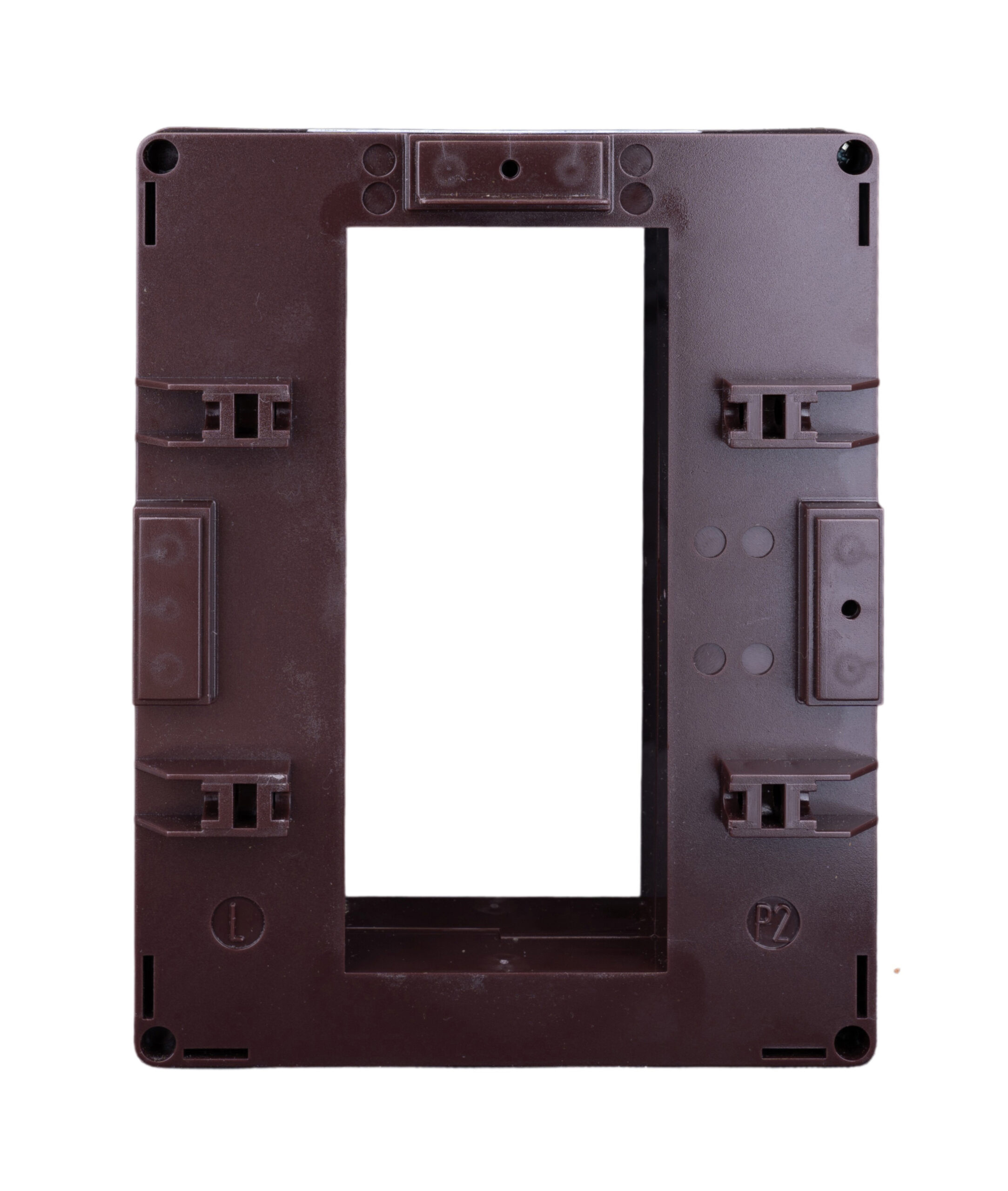

Transformator de curent 2000/5A, 125×50, clasa 0,5

314,40 lei Pret cu TVA 380,42 lei

Transformator de curent 2000/5A, 125×50

Compare

Greutate	1,30 kg
Dimensiuni	160,00 × 125,00 × 87,00 cm
Conexiune	##
Accuracy classes	##
HxBxT mm	87x125x160
Curent primar	2000
LxÎxA mm	125x87x160
Unitate de ambalare	1
Carcasă	##
Winding secondary side	Screw terminals M4
PREG	2330
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Intended use	for copper bars up to 125 x 50mm
disipare	-23,00
Simbol CAD	P
Specifications	##
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Fabricant	Schrack
Terminale externe CAD	1
Montaj	by fixing screws on the busbar
PROMO CODE GER INDUSTRY	6863-00052-76
Rated frequency	50
Descriere electrică CAD	2000/5A, 125x50mm
Clasă	0,5
Housing material	Polycarbonate, self-extinguishing;Class V0 according to UL-94
Masă g	1300
Bare colectoare maxim	125×50
COD PROMO	6863-0041-63
COD COMANDĂ	MG959200-A
Accesorii opționale	MGX20006–;MGX20306–;MGX20406–
Standard produs	EN 61869-2;BS3938;BS7626
PROMO CODE CH	6863-0069-12
Burden	Class 0.5 (25VA);Class 1 (40VA);Class 3 (50VA)
PU	3
Masă netă	1,30

Fisa tehnica

Fisa Tehnica RO

Fisa Tehnica EN

Transformator de curent 2000/5A, 125×50, clasa 0,5
