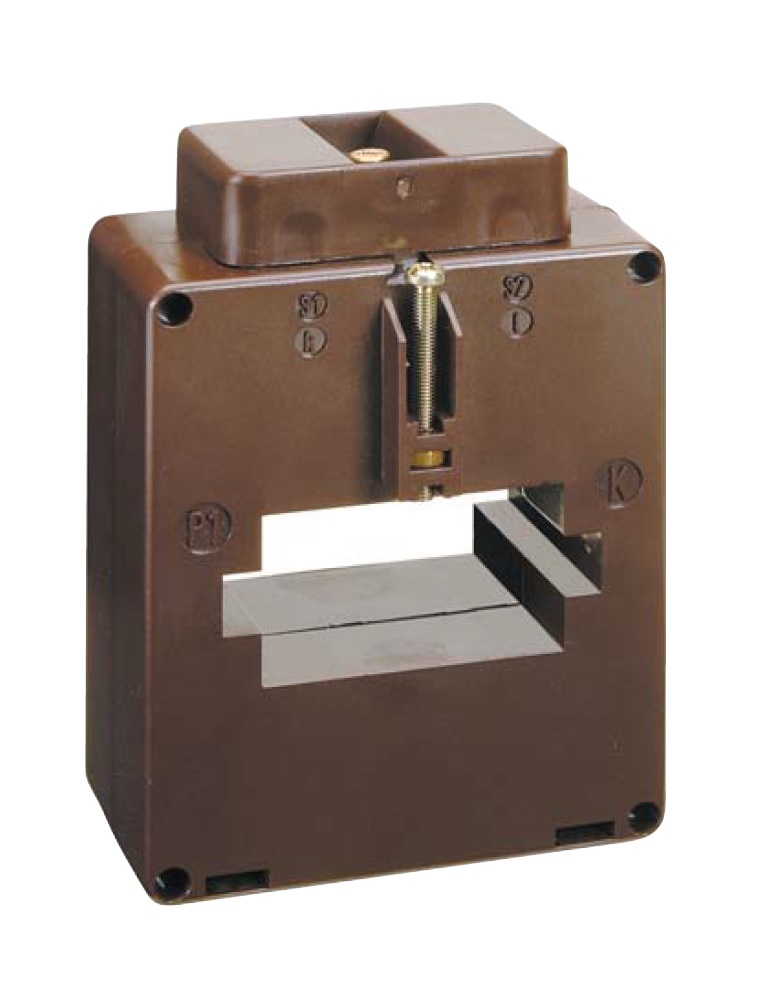

Name: Transformator de curent 1600/5A 50*30/60*10mm, clasa 0,5
SKU: MG956160-A
Price: 226.5 RON
Availability: InStock

Transformator de curent 1600/5A 50*30/60*10mm, clasa 0,5

226,50 lei Pret cu TVA 274,07 lei

TASI50D120 Transformator de curent 1600/5A 50*30/60*10mm, clasa 0,5

Compare

Greutate	0,47 kg
Dimensiuni	48,00 × 90,00 × 130,00 cm
Masă g	500
disipare	-346,00
Conexiune	##
LxÎxA mm	90x130x48
Accuracy classes	##
Bare colectoare maxim	60×10
Unitate de ambalare	1
Carcasă	##
PREG	2330
COD COMANDĂ	MG956160-A
HxBxT mm	130x90x48
DESCRIERE2	Transformator de curent 1600/5A
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Housing material	Polycarbonate, self-extinguishing
Burden	Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA)
Fabricant	Schrack
Montaj	by fixing screws on the busbar
Rated frequency	50
Clasă	0,5
COD PROMO	9111-0030-02
Masă netă	0,47
Standard produs	EN 61869-2
PROMO CODE CH	9111-0049-80
Winding secondary side	Screw terminals M4;Faston 4,8×0,8mm
Intended use	for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Curent primar	1600
PROMO CODE GER INDUSTRY	9111-00027-28

Transformator de curent 1600/5A 5030/6010mm, clasa 0,5

Fisa tehnica
