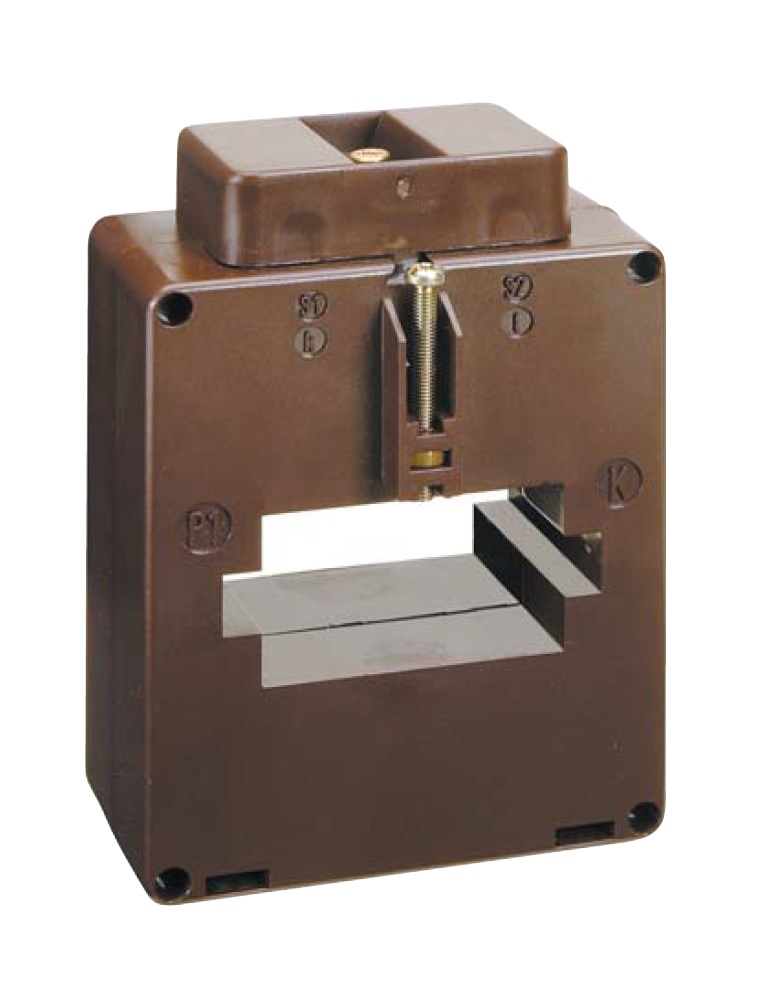

Transformator de curent 1200/5A 5030/6010mm, clasa 0,5

Name: Transformator de curent 1200/5A 50*30/60*10mm, clasa 0,5
SKU: MG956120-A
Price: 239.54 RON
Availability: OutOfStock

239,54 lei Pret cu TVA 289,84 lei

TASI50D120 Transformator de curent 1200/5A 50*30/60*10mm, clasa 0,5

Stoc epuizat

Greutate	0,47 kg
Dimensiuni	48,00 × 90,00 × 130,00 cm
COD PROMO	2818-0027-76
Masă g	500
disipare	-346,00
Conexiune	##
PROMO CODE GER INDUSTRY	2818-00024-15
LxÎxA mm	90x130x48
Accuracy classes	##
COD COMANDĂ	MG956120-A
Bare colectoare maxim	60×10
Unitate de ambalare	1
DESCRIERE2	Transformator de curent 1200/5A
Carcasă	##
PREG	2330
PROMO CODE CH	2818-0046-12
HxBxT mm	130x90x48
Curent primar	1200
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Housing material	Polycarbonate, self-extinguishing
Burden	Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA)
Fabricant	Schrack
Montaj	by fixing screws on the busbar
Rated frequency	50
Clasă	0,5
Masă netă	0,47
Standard produs	EN 61869-2
Winding secondary side	Screw terminals M4;Faston 4,8×0,8mm
Intended use	for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm

Fisa tehnica
