Name: Transformator de curent 1000/5A, 65x32, clasa 0,5
SKU: MG957100-A
Price: 165.75 RON
Availability: InStock

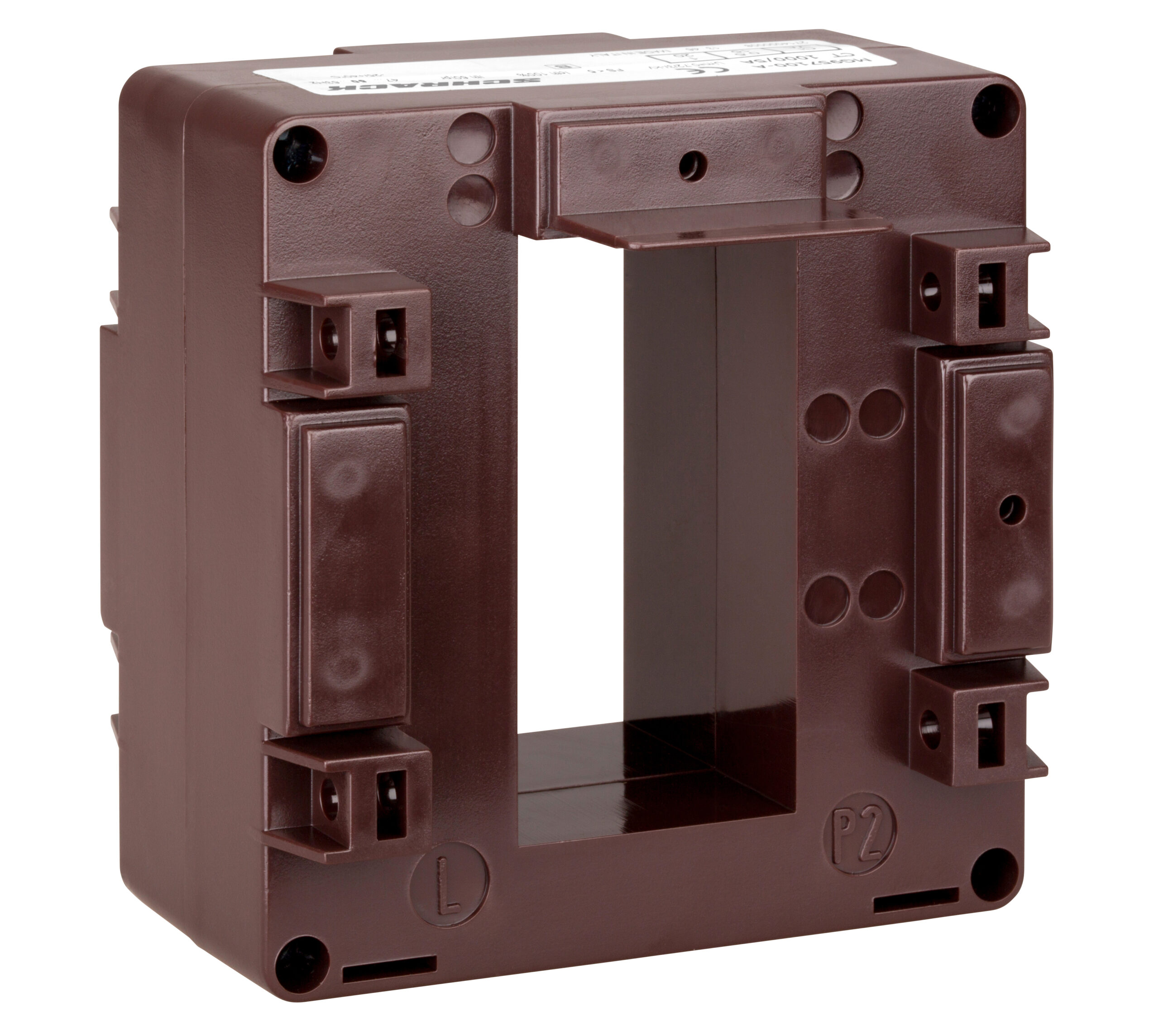

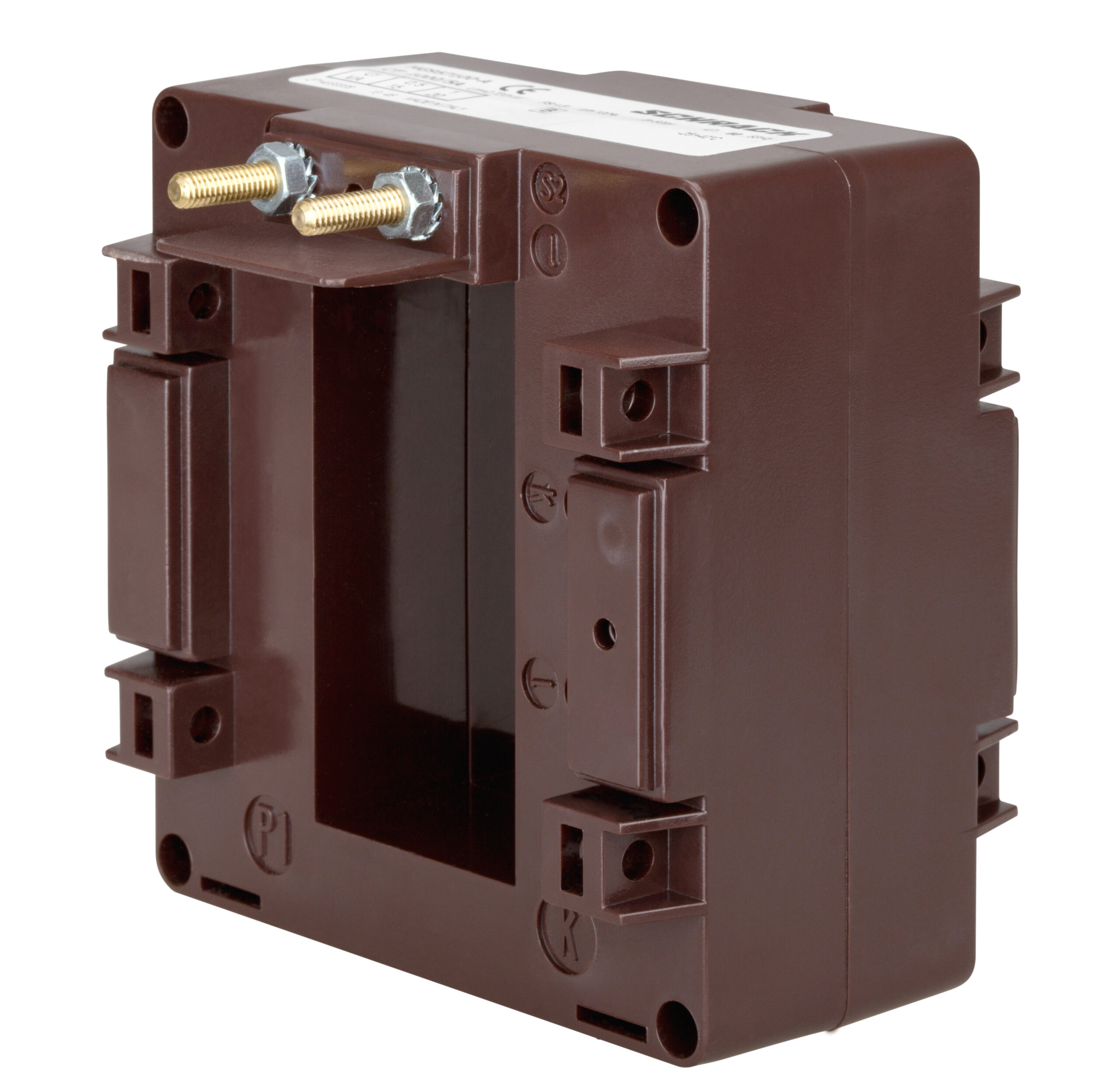

Transformator de curent 1000/5A, 65×32, clasa 0,5

165,75 lei Pret cu TVA 200,56 lei

Transformator de curent 1000/5A, 65×32

Compare

Greutate	0,75 kg
Dimensiuni	94,00 × 90,00 × 90,00 cm
LxÎxA mm	90x90x94
Conexiune	##
Accuracy classes	##
Bare colectoare maxim	60×30
Masă g	750
Unitate de ambalare	1
Carcasă	##
disipare	-20,00
Descriere electrică CAD	1000/5A, 64x20mm
Masă netă	0,75
COD PROMO	6917-0021-95
Winding secondary side	Screw terminals M4
PREG	2330
Notă	The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore,
Simbol CAD	P
Burden	Class 0.5 (15VA);Class 1 (20VA);Class 3 (25VA)
PROMO CODE CH	6917-0036-43
Specifications	##
Grad de protecţie	IP00 terminals;IP20 with terminal cover
Intended use	for copper bars up to 65 x 32mm
PROMO CODE GER INDUSTRY	6917-00019-38
Fabricant	Schrack
Terminale externe CAD	1
Montaj	by fixing screws on the busbar
Rated frequency	50
Clasă	0,5
Housing material	Polycarbonate, self-extinguishing;Class V0 according to UL-94
COD COMANDĂ	MG957100-A
Accesorii opționale	MGX20006–;MGX20306–;MGX20406–
Curent primar	1000
HxBxT mm	90x90x94
Standard produs	EN 61869-2;BS3938;BS7626
PU	3

Fisa tehnica

Fisa Tehnica RO

Fisa Tehnica EN

Transformator de curent 1000/5A, 65×32, clasa 0,5
